יישומים
-

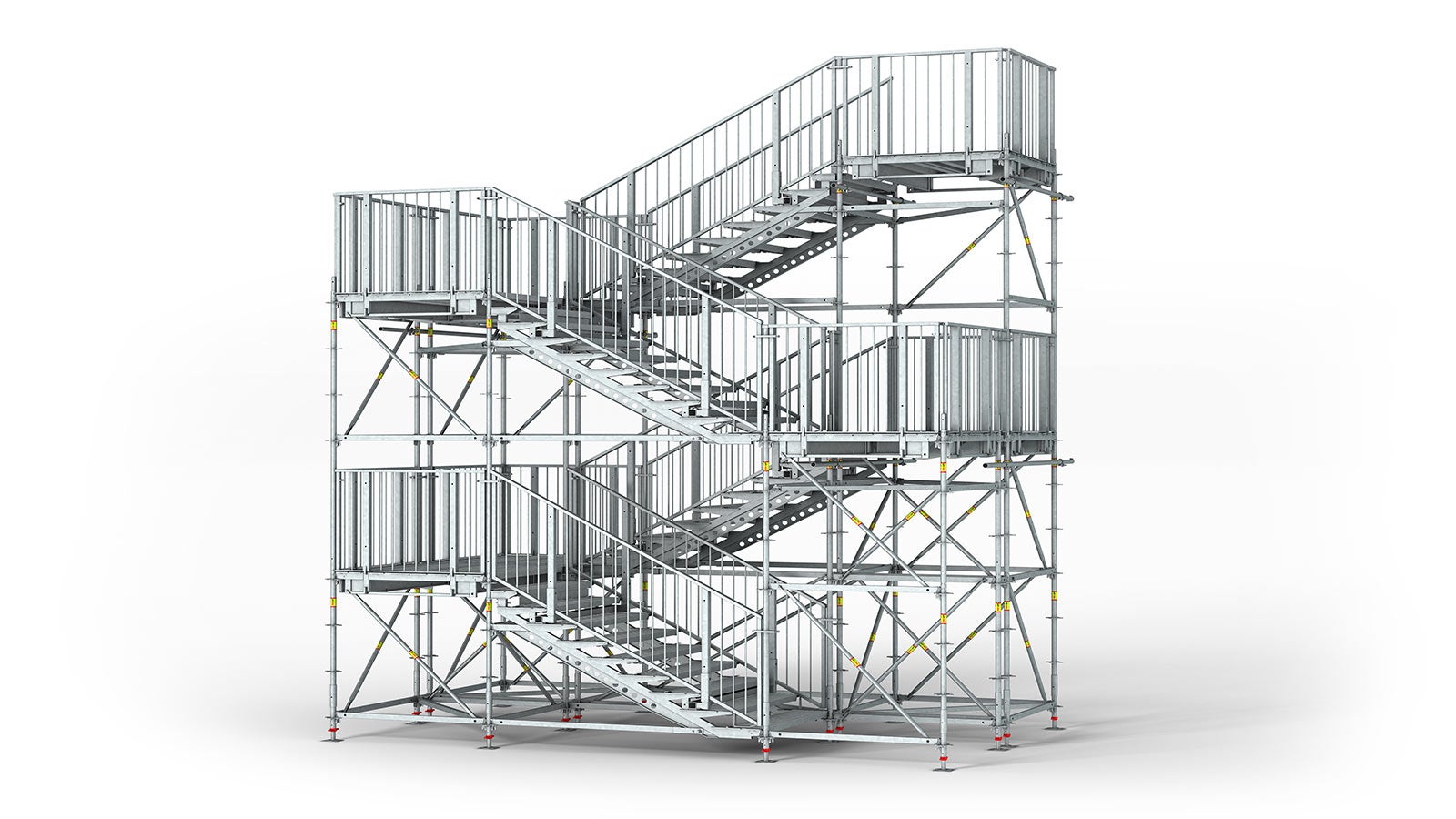

Stair geometry and landing arrangement meet the requirements for public access.
-

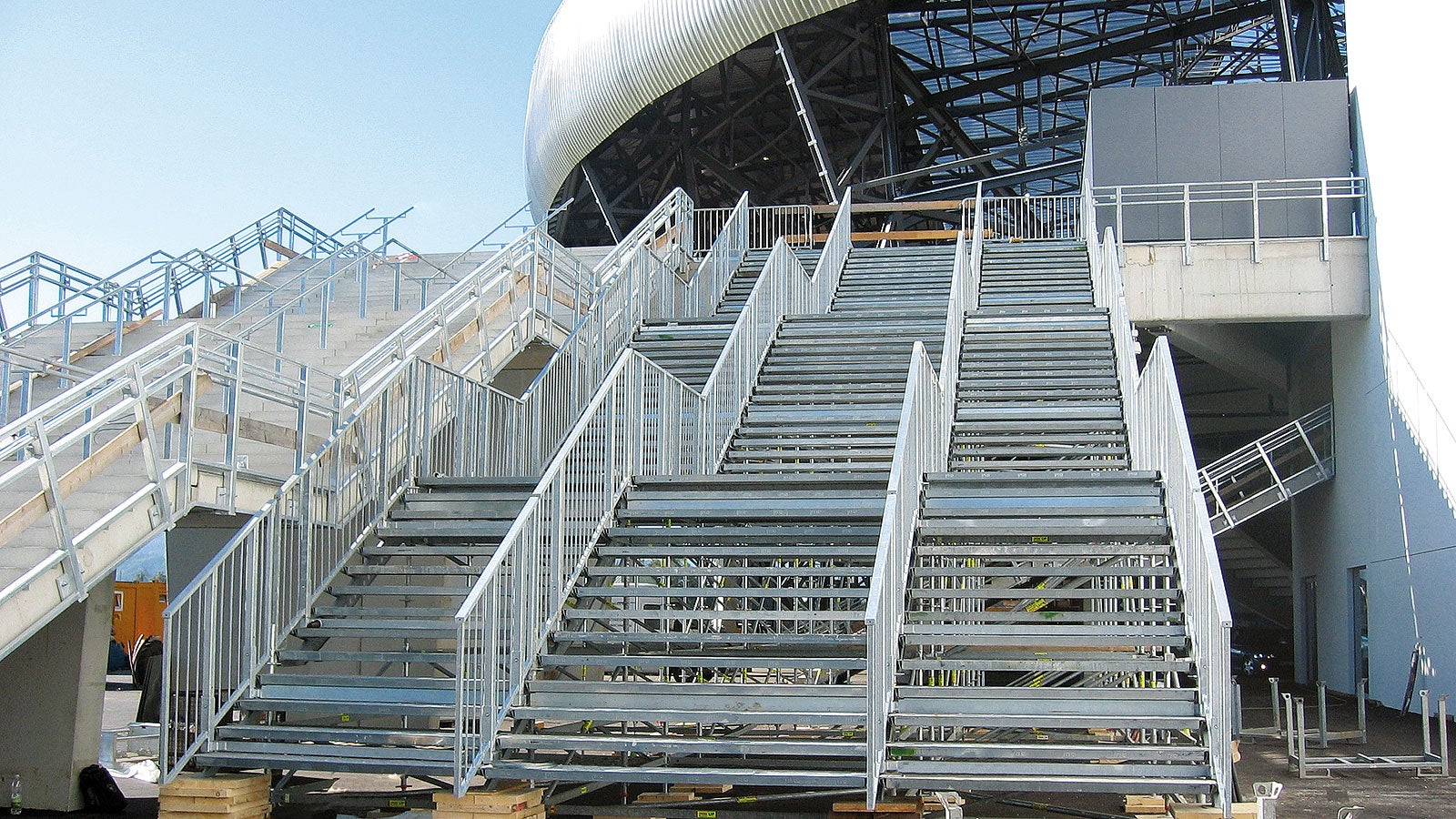

For large public gatherings, linked continuous staircases with separate access points through inner guardrails are used.
-

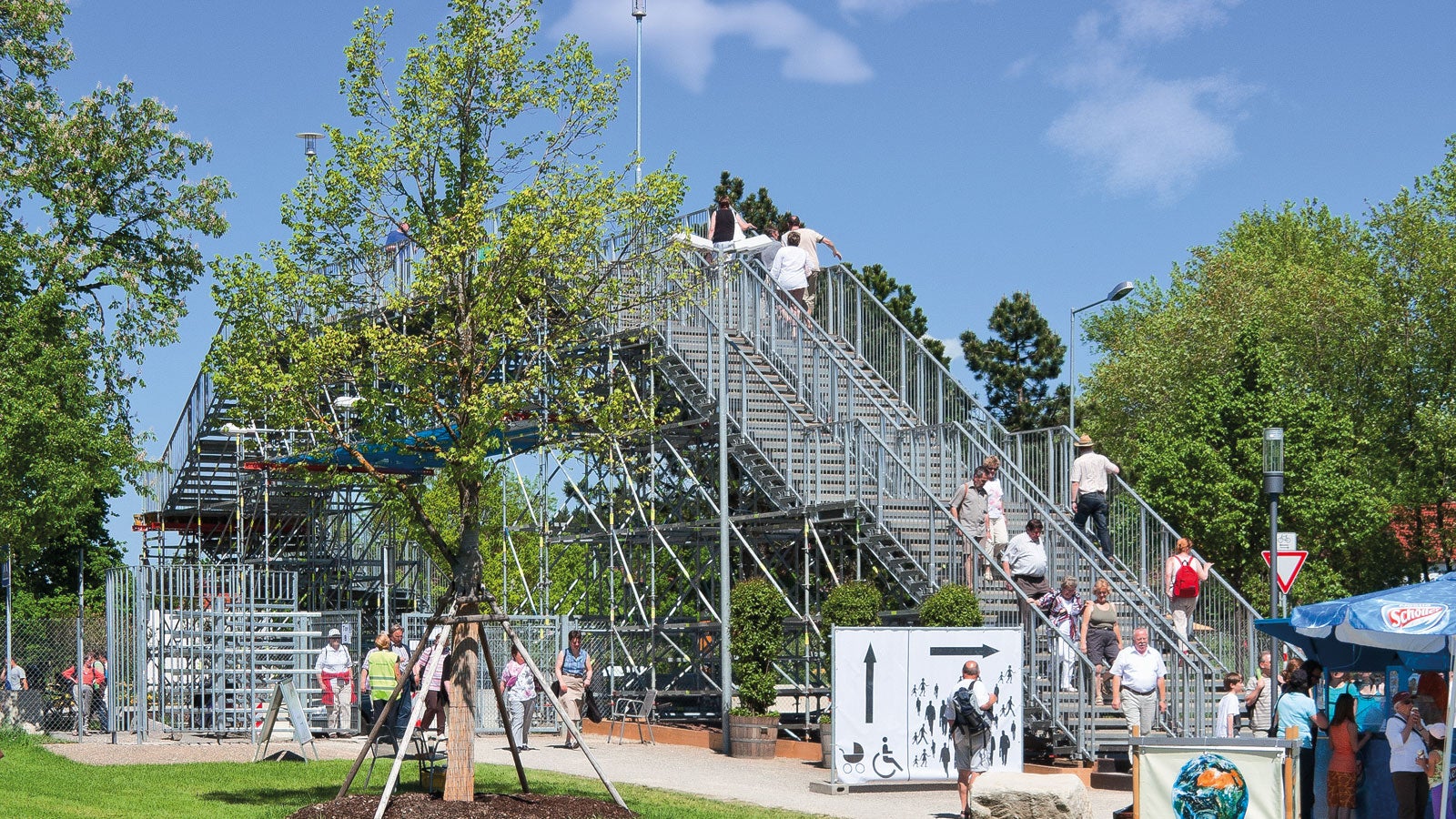

Solution for a trade fair: stairway leading to a pedestrian bridge which crosses a multi-lane road.
-

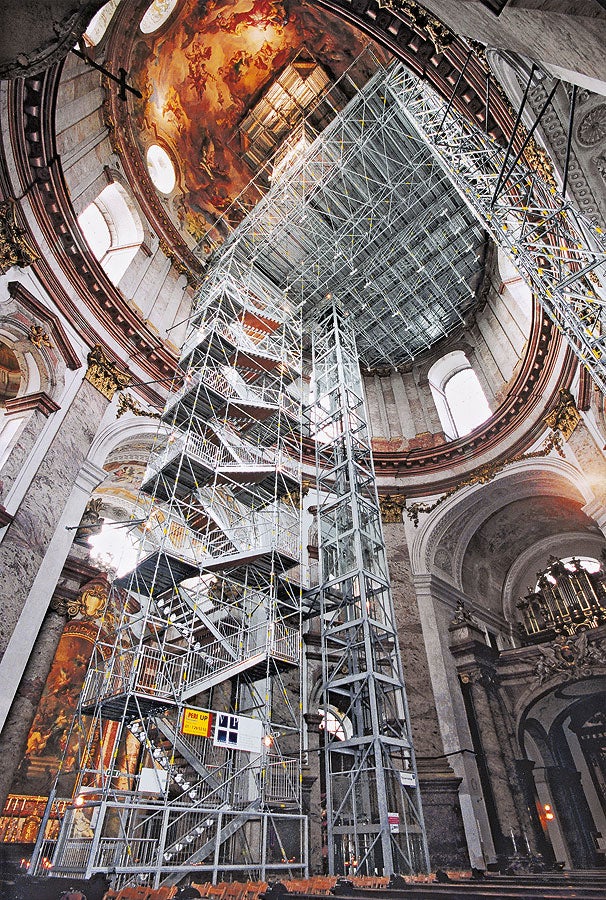

PERI UP Rosett Public Stair as stair tower inside a church which serves as an emergency stairway in case the electrically-operated elevator breaks down.
-

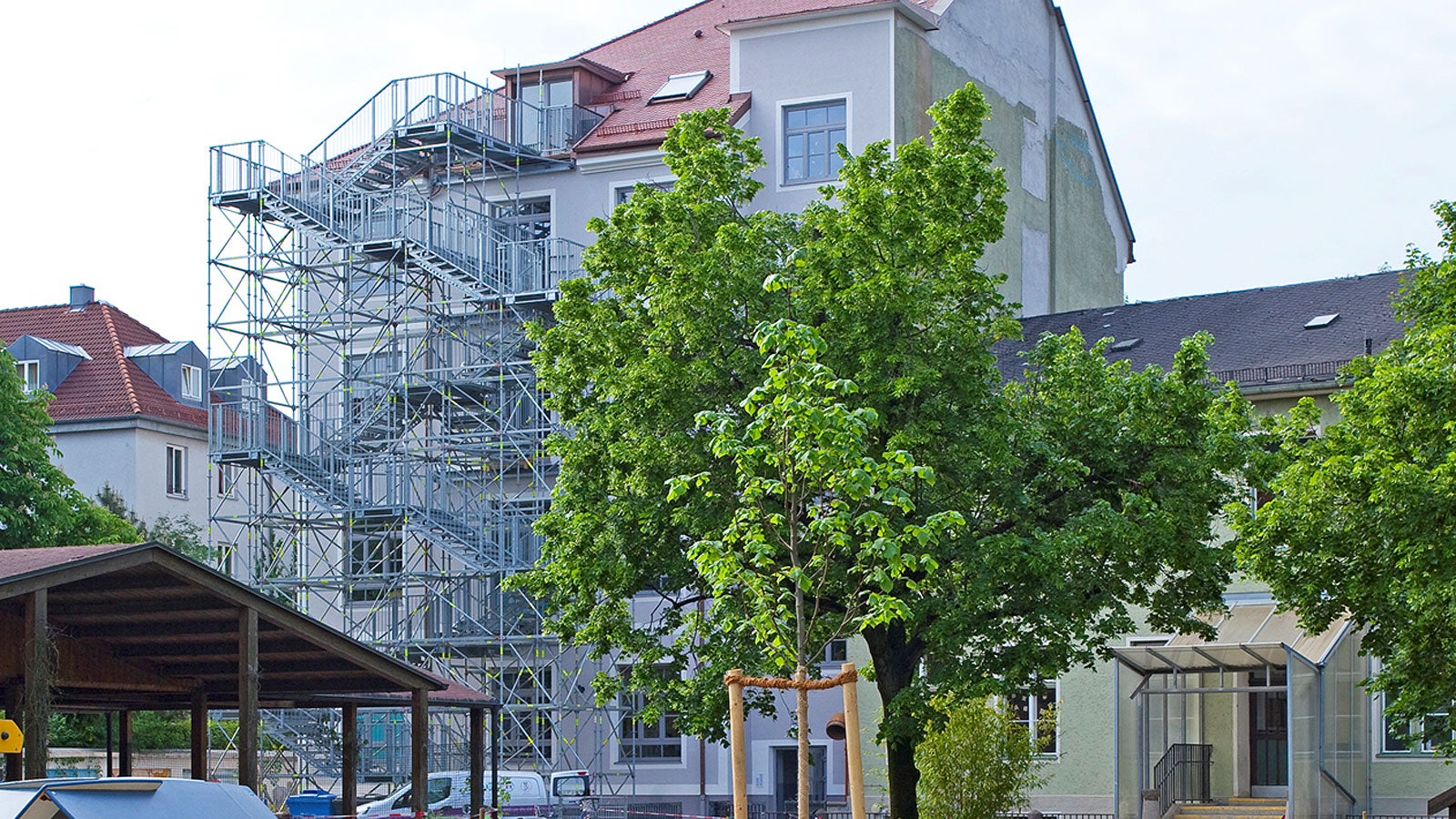

PERI supports its customers already in the planning phase with the development of different solutions. At the end, the customer receives the required plans together with the relevant statical proof.
גיליון נתוני מוצר
סוג פיגום
Öffentliche Gerüsttreppe
מידות
מידות: 3,25 m x 2,50 m (Grundrissmaße Turm)
סוג השימוש
Zugangstechnik
סוג בנייה
Stiel
כיתת טעינה
Lastklasse 1 bis 4 (0,75 kN/m² - 3,00 kN/m²); Lastklasse 1 bis 6 (0,75 kN/m² - 6,00 kN/m²)
גובה
Nach Regelausführung: bis 12 Meter
יחידות מידה
Metrisch
סוג המדרכה
Stahl
תקן
DIN EN 12810 und 12811;
תיעוד טכני
Aufbau- und Verwendungsanleitung, Tabellenbuch, Anwenderhinweis, Programmübersicht, Typenprüfung
עומס מותר
7,5 kN
אַחֵר
Aufbauvarianten: Einläufige Treppe in den Breiten 150 cm, 200 cm oder 250 cm, mehrläufige Treppe beliebiger Breite als Aneinanderreihung einläufiger Treppen, gewinkelte Treppen sowie Treppentürme mit und ohne Treppenauge
אישורי רשות הבניין
פתרונות לוגיסטיים
Rungenpaletten, Gitterboxen
פתרונות מערכת
Gegenläufige Ausführung, Fluchttreppe, freistehender Treppenturm
תוכנה
PERI CAD
